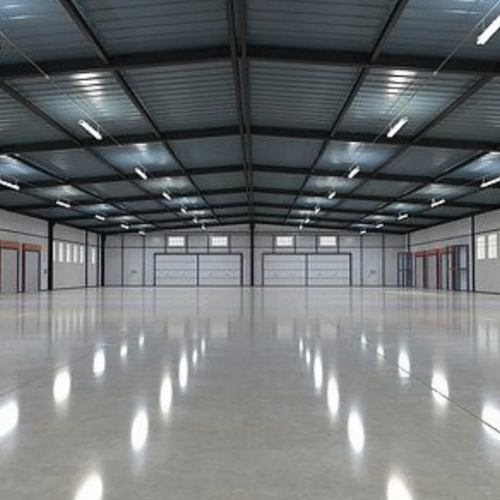

PEB Warehouse Structural Shed

Get a Price/Quote

MOQ : 1 Unit

PEB Warehouse Structural Shed Specification

Window Material
Aluminium / PVC

Wall Materials
Insulated Sandwich Panel / Puf Panel

Life Span
30+ Years

Dimension (L*W*H)
As per requirement; Typical: 30m x 15m x 7m

Insulation
Available (PUF / Glasswool / Rockwool)

Open Style
Rolling / Sliding

Connection
Bolted Connection

Door Material
Steel / Metal

Material
Pre-Engineered Steel Structures

Roof Material
Color Coated Galvalume Sheet

Thickness Of Wall Panel
50mm / 75mm / 100mm

Door
Rolling Shutter / Sliding Door

Window
Provided as per design

Window Style
Sliding / Fixed / Louvered

Floor Material
Concrete

Floor Load
5-10 KN/m2

Roof Dead Load
0.25-0.5 KN/m2

Roof Live Load
0.57-0.75 KN/m2

Earthquake Intensity
Up to Zone 5

Color
Customized (Standard: Blue, White, Grey)

Use
Warehouse, Storage Unit, Industrial Shed

Foundation Type
RCC Isolated / Raft or Pile

Frame Type
Rigid Frame / Portal Frame

Eave Height
6-9 meters (as required)

Surface Finish
Powder Coated / Hot Dip Galvanized

Cladding
Profiled Sheets / Sandwich Panels

Ventilation
Turbo Ventilators / Louvers available

Bay Spacing
6-8 meters

Purlin Type
C & Z Purlins

Span
Up to 60 meters (single span)

Gutter & Downspout
GI / PVC as per design

Fire Resistance
As per IS standards

Assembly
On-site bolted assembly

Skylight Sheets
Polycarbonate/FRP optional

Maintenance
Minimal, corrosion resistant

Height
Up to 12 meters (customizable)

Clear Span
No interior columns (if required)

Wind Load Resistance
Applicable up to 180 km/h

PEB Warehouse Structural Shed Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About PEB Warehouse Structural Shed

Capitalise on the new release of our PEB Warehouse Structural Shed, a prodigious solution for industrial and commercial demands. Designed with a prime focus on longevity and flexibility, it accommodates spans up to 60 meters with no interior columns, delivering a gilt-edged facility for storage and operations. Engineered with a rigid or portal frame, superior corrosion resistance, and robust wind and earthquake load capacity, this structure is fully customizable-from color to finish. Grab yours today and secure a world-class asset for your supply chain efficiency.

Versatile Warehouse Solution for Multiple Applications

The PEB Warehouse Structural Shed is ideal for various usage types-including warehouses, industrial sheds, and storage units. With its advanced powder coated or galvanized surface, and durable color-coated galvalume roofing, this structure promises enduring performance. Its prodigious span capacity, customizable height, and insulated wall options ensure suitability for diverse applications, making it a prime choice for industrial and storage sectors in need of robust infrastructure.

Sample Availability, Supply Policy, and Certifications

We offer hassle-free supply and transport services for the PEB Warehouse Structural Shed, ensuring seamless delivery nationwide. Samples are available upon request, and our transparent sample policy allows prospective buyers to evaluate the quality firsthand. Each shed is crafted as per relevant IS standards, offering certification for fire resistance and structural safety. Our team is committed to providing gilt-edged products aligned with your requirements-capitalise on our reliable offerings for a secure investment.

FAQ's of PEB Warehouse Structural Shed:

Q: How is the PEB Warehouse Structural Shed installed at the site?

A: The shed is assembled through on-site bolted connections for quick and reliable installation, minimizing construction time and disruption.

Q: What benefits does the clear span design provide?

A: The clear span feature, with no interior columns, maximizes usable floor space, allowing for flexible storage layouts and efficient movement of goods and machinery.

Q: Where can the PEB Warehouse Shed be used?

A: It is highly versatile, suitable for use as warehouses, industrial sheds, storage units, and other commercial spaces requiring robust, long-lasting infrastructure.

Q: What customization options are available for the structural shed?

A: The shed offers customization in dimensions, color, material finish, cladding, insulation, and type of doors and windows, ensuring it meets specific project requirements.

Q: When can a sample of the warehouse shed be supplied?

A: Samples are provided promptly upon request as per our sample policy, enabling you to review material quality and design before placing a full order.

Q: How does the structure ensure durability and low maintenance?

A: The use of powder-coated or hot-dip galvanized finishes, high-grade materials, and minimal-maintenance design ensures exemplary corrosion resistance and a long life span.
